Different type table for fiber laser cutter

Fiber laser cutter could apply in many different producing industries, suck as elevator manufacturer, door manufacturer etc.

The customer may pay more attention to the machine table, because it is important for the cutting.

Stable cutting machine bed could help achieve good cutting outcome.

There are total two kinds of machine bed  table in our company, one is for single table, another for exchange table.

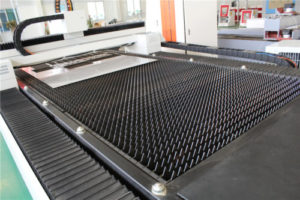

Here show two photos for your reference:

fiber laser cutting systemfiber laser cutting system

1.What is the difference between the single table and exchange table of fiber laser cutter

Maybe there is some one who do not know what is single table and exchange table of the fiber laser cutter.

Here first let me make a sample introduction.

The two different table are all designed by our engineer, for the single table, it only has one machine table.

If customer want to add cover on it, this is impossible, because it may influence the material production.

But for the exchange table, it may do not have such issue, the double table could exchange, when the production is being produced,

we could put another on the second table, then they exchange.

2.The machine table of fiber laser cutter

Our machine bed is high quality because it is new designed  plate welding machine bed.

It is more stable than other material bed.

Besides, the gantry is Reinforced Manganese Steel Cross Beam, the weight is lighter,so that its acceleration speed would be quicker.

fiber laser cutting machine bed

3.The specification of the machine

FEATURES TECHNICAL DATA
Laser wavelength 1070-1080 nm
Cutting area 1500×3000(mm)
Z-axis path 120 mm
Machine tolerance ± 0.05 mm/m
Repetition tolerances ± 0.03 mm
Maximum support weight of the table About 1000kg
X,Y-axis location accuracy ≤±0.01mm
X,Y-axis repeat location accuracy ≤±0.01mm
X,Y-axis idle moving speed 80 m/min
Max cutting speed ≤45m/min
Requisite voltage: 3x400V / 3x480V
Maximum voltage tolerance: +6% / -10%
