What’s the composition Fiber Laser cutting machine

More and more metal processing field has choose the fiber laser cutting machine.

Both in sheet metal processing and metal sheet cutting profession.

Many customers want to know what’s the composition of fiber laser cutting machine.

Especially when they buy CNC fiber laser cutting system.

What’s the main function of each parts?

XT fiber laser cutting manufacturer will tell you in detail.

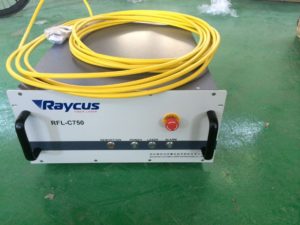

fiber laser cutting machineFirst of all, it is the fiber lasers generator.

The fiber laser cutting system laser generator produce laser beam energy to cutting material power.

Therefore,it is the most important part in fiber laser cutter .

The price is relatively expensive.

fiber laser cutting machine

Secondly, the cutting head of fiber laser cutting machine.

The CNC fiber laser cutting machine cutting heads including mirrors, lens, sensors, nozzles and other parts.

The laser beam pass the cutting head and irradiate to the material surface start cutting.

fiber laser cutting head

Thirdly,the external Ray on fiber CNC laser cutting machine.

The external ray help to transfer the laser beam to where it is needed.

In order to make the beam path working successfully.

The cover protect all the mirrors.

We must assure the gas clean so that  protecting the lens from contamination.

Fourthly the fiber laser cutting table.

x, y, z axis moving on the fiber laser cutting machine cutting table.

The cutting is also in this cutting table.

For placing the cutting material, the x, y, z axis moving is correct and accurate according to the control procedures.

Fifthly,it is servo motor on CNC fiber laser cutter .

The servo motor can control the cutting speed.

The positioning accuracy is accurate .

It can transfer the voltage signal to torque and speed in order to control the cutting.

The speed of servo motor rotor is controlled by the input signal.
