Main Parts of Fiber Laser Marking Machine
The laser marking is with a laser beam to get permanent marks on a variety of different material surfaces.
The effect of marking is to expose the deep matter by the evaporation of the surface material,
or to “mark” the trace by the chemical and physical reactions of the surface material caused by the laser energy,
or to burn some of the material by laser energy, light to achieve the needed patterns and text.
This article will introduce the main parts of fiber laser marking machine.
Outside views of fiber laser marking machine:
Inner views of fiber laser marking machine:
Below are the main components of fiber laser marking machine.
1.Fiber laser/Fiber laser source
2. Laser scanner/galvo head/laser head
3. F-theta lens
4. Control board&marking software
6. Lifting pillar
7. 2D working table
8. Power supply
Now we will introduce it one by one by details.
Fiber laser/Fiber laser source

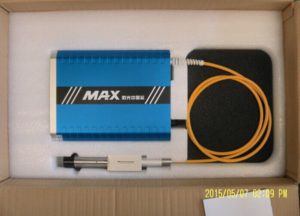

There are 4 brands in the current laser market, respectively Germany IPG, China Raycus, JPT and Max.
Photos are shown below:
Laser power range is 20w 30w 50w 100w. Among this, 20w is the most popular power model.
The cost of the laser power from high to low is as follows 100w>50W>30W>20W. and high price & high quality can be ordered as follows IPG>Raycus>JPT>Max
Next comes the more introduction of its other main products.
