  • TK2.0 Two-chuck Side-mounted Pipe Laser Cutting Machine

    TK 2.0

    Two-chuck side-mounted tube cutting machine

    1000W-6000W

    Two-chuck side-mounted tube cutting machine details

    High-speed and efficient cutting of small tubes

    High-speed and efficient cutting of small tubes

    Focus on cutting small diameter tubes, feeding speed 150m/min, chuck speed 150r/min, super high efficiency.

    Servo drive, off-set cutting

    Servo drive, off-set cutting

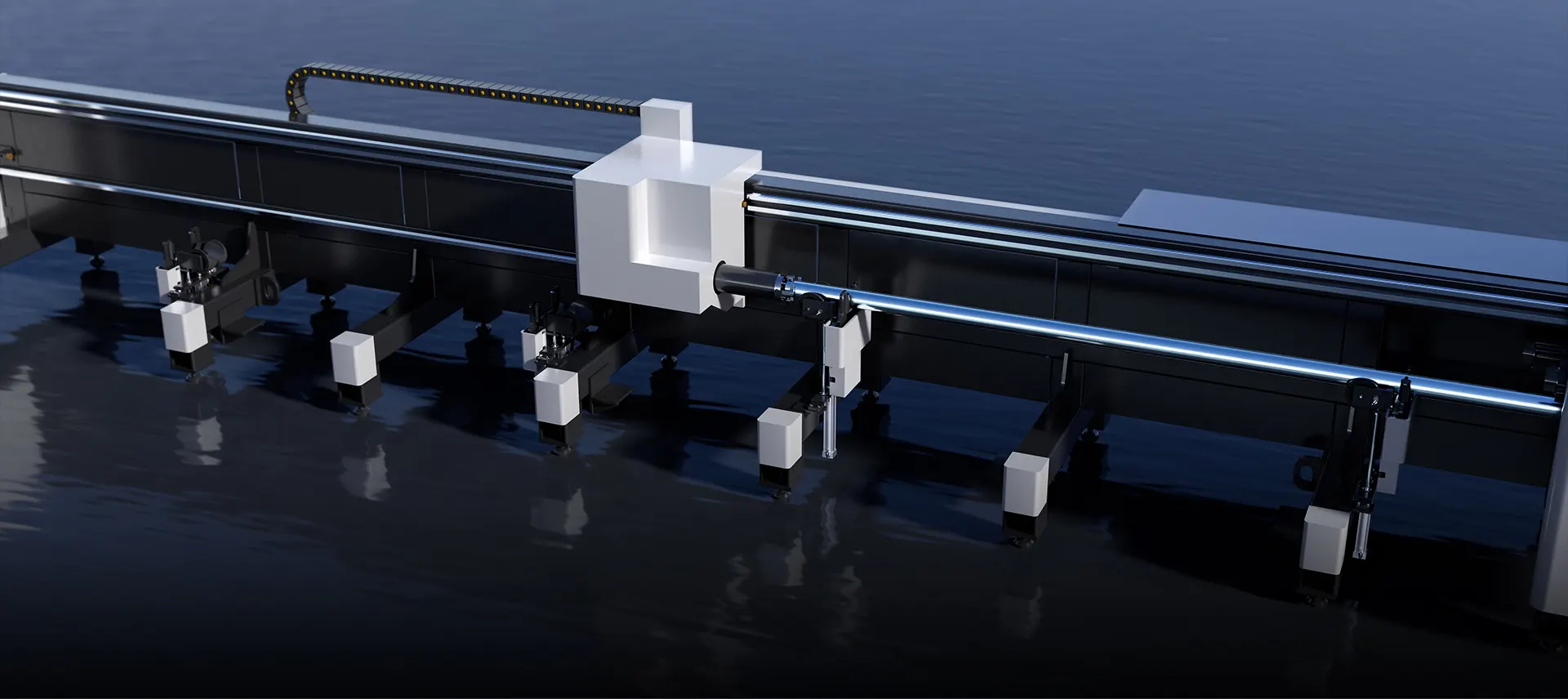

    Innovative servo motor drive, the front chuck moves forward smoothly and steadily, and automatically pushes forward to achieve cutting of short tail materials, increasing material utilization by 12%.

    Side-mounted machine body

    Side-mounted machine body

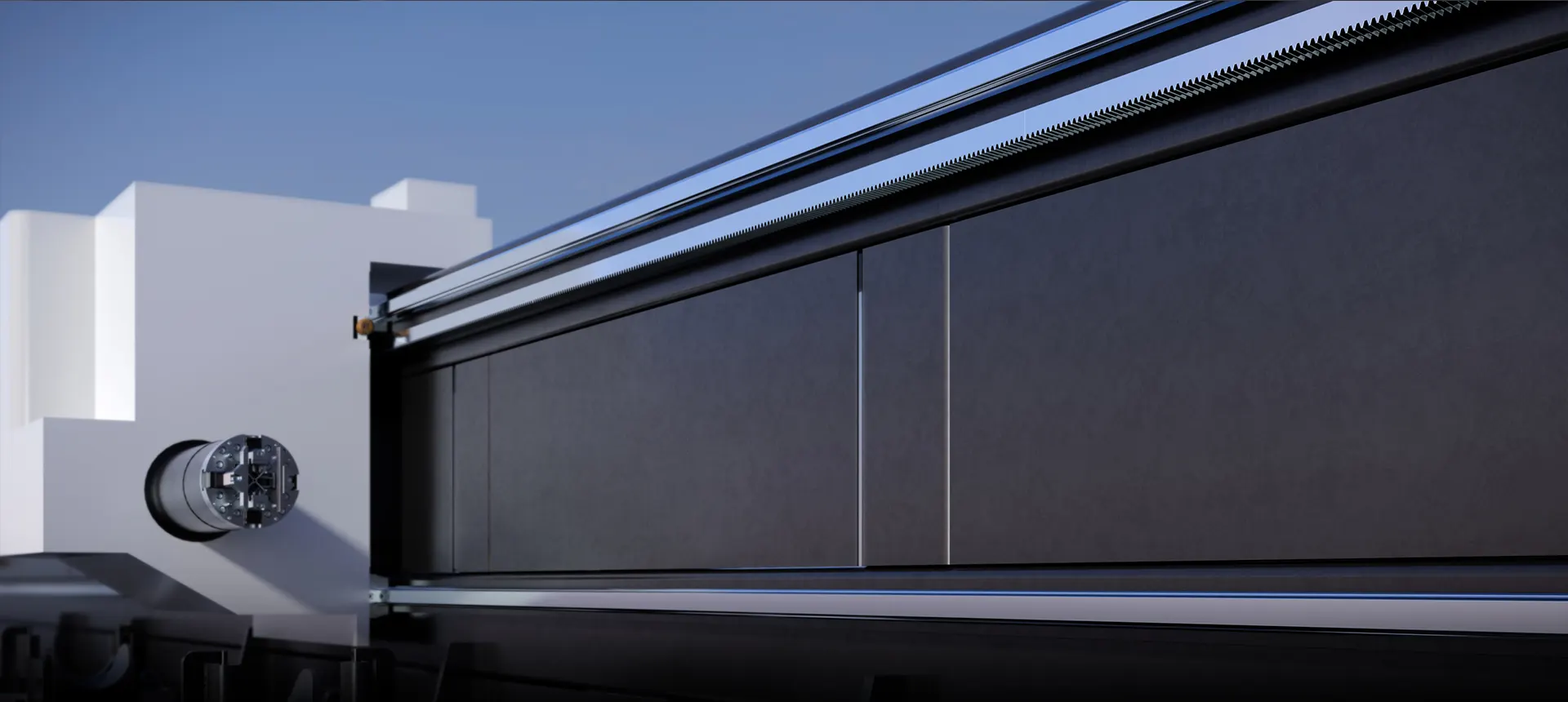

    The XT LASER two-chuck side-mounted laser tube cutting machine has a stable structure and convenient and efficient loading.

    Z-axis sealing module

    Z-axis sealing module

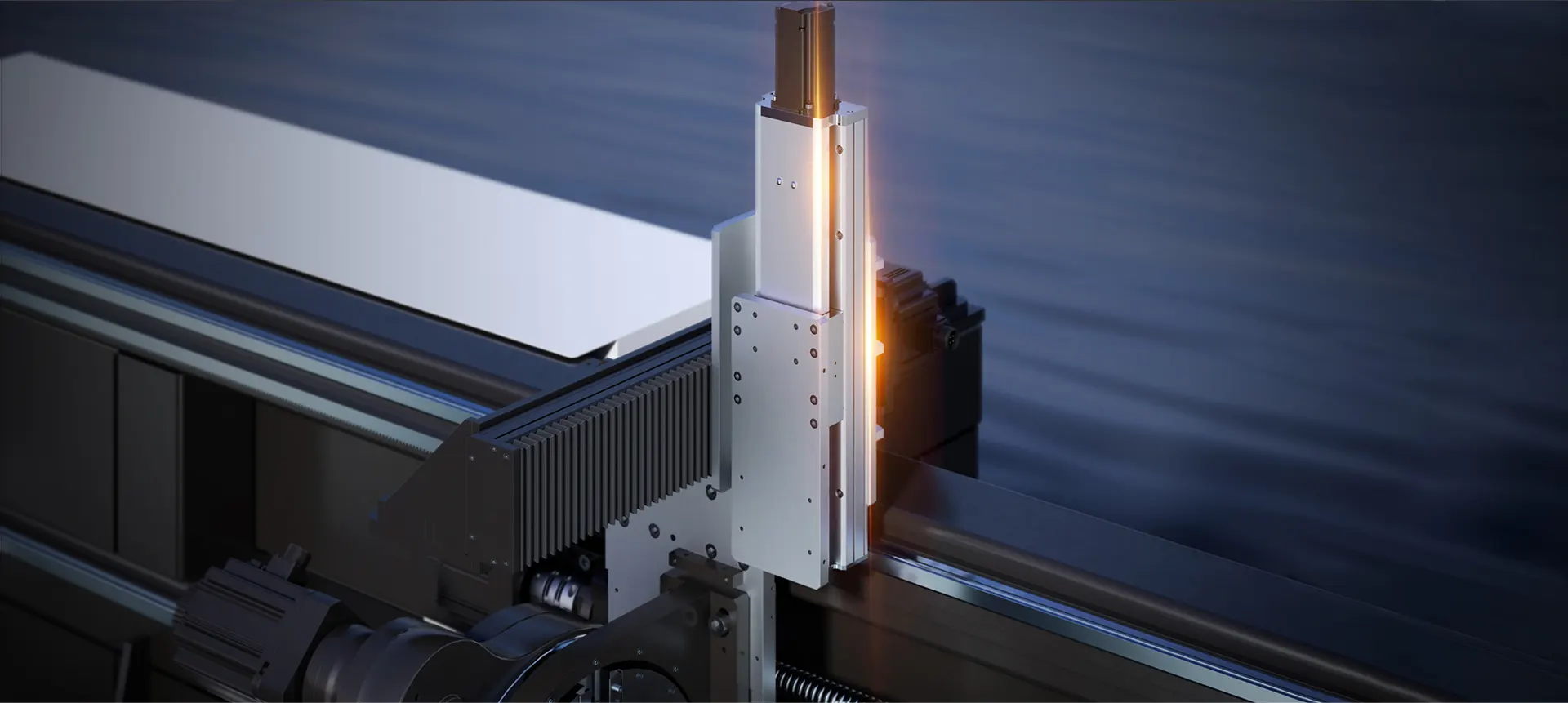

    Modular design, sealed and dustproof. Long-lasting precision and easy maintenance.

    Multi-faceted Wrap-around support

    The roller spacing is small, which can support the loading of 3-meter short pipes and is suitable for flexible processing of pipes of different lengths.

    Optional Configurations

    Specifications

    Model XT-TK090 XT-TK120 XT-TK160 XT-TK240
    Power 1000-3000W 1000-3000W 1000-6000W 1000-6000W
    Clamping Range 10-90mm 10-120mm 20-160mm 20-240mm
    Processing Length 6000mm 6000mm 6000mm/9000mm/12000mm 6000mm/9000mm/12000mm
    Tube Type Round tube, square tube, rectangular tube Round tube, square tube, rectangular tube Round tube, square tube, rectangular tube Round tube, square tube, rectangular tube
    Cutting Accuracy ±0.05mm ±0.05mm ±0.05mm ±0.05mm
    Acceleration 1.5G 1.5G 1G 1G
    Feeding Speed 200m/min 150m/min 100m/min 100m/min
    Chuck Speed 200r/min 150r/min 120r/min 120r/min
    Get A Quote

    Contact us for professional technical support, online quotes, catalogs or demo videos.

  • H profile steel laser cutting machine

    HR Series

    H Beam Metal Laser Cutting Machine

    Processing size:150×75mm-1250×650mm

    Length processing range: 2500mm-12500mm

    Bevel cutting, automatic loading and unloading and automatic waste collection can be realised

    H profile steel laser cutting machine details

    AB-axis Swinging Cutting Head
    AB-axis Swinging Cutting Head
    • High Efficiency: The AB-axis swinging cutting head is specifically designed for the complex geometries of H-beams, enabling cutting at any angle without secondary processing, significantly improving cutting efficiency.
    • Intelligent: The cutting head is equipped with intelligent sensors that monitor the cutting process in real-time, automatically adjusting cutting parameters to ensure stable and reliable cutting quality.
    • Flexible: The cutting head can flexibly adjust the cutting angle and position to adapt to the cutting needs of different H-beam specifications, meeting diverse processing tasks.
    • Precise: Driven by high-precision servo motors, the cutting head positioning is precise, and the cutting edges are smooth and burr-free, meeting high-precision processing requirements.
    Feeding System: Efficient and Convenient
    Feeding System
    • Feeding Claws: Made of high-strength alloy steel, the claws have strong clamping force and stable feeding, ensuring the continuity of the cutting process.
    • Segmented Feeding Rack: Can be freely combined according to the length of the H-beam, realizing long and short material feeding, improving feeding efficiency, and reducing manual operation.
    Automatic Deviation Correction System
    Automatic Deviation Correction System
    • High-precision Sensors: Monitor the position of the H-beam in real-time, automatically identify deviations, and ensure cutting accuracy.
    • Intelligent Algorithm: Automatically adjusts the cutting path based on the deviation, achieving precise cutting.
    Upper and lower support rollers
    Upper and lower support rollers
    • Segmented Design: Freely combine the size of the loading and unloading table according to processing needs, adapting to the processing of H-beams of different lengths.
    • Lifting Trolley: Easily lifts H-beams, realizing automated loading and unloading, and reducing labor intensity.
    • Unloading Drive Device:Automatically drives the unloading of cut H-beams, improving production efficiency.

    Application Fields

    laser cutting machine in Steel Structures

    Steel Structure Construction

    XT LASER H-beam laser cutting machines can achieve high-precision and high-efficiency H-beam cutting, meeting the strict requirements of steel structure buildings for component processing accuracy and efficiency. They are widely used in the construction of various steel structure buildings such as factories, bridges, and stadiums.

    Machinery Manufacturing

    Machinery Manufacturing

    H-beams are often used in machinery manufacturing to manufacture load-bearing structural parts such as frames and brackets. XT LASER H-beam laser cutting machines can achieve complex shape cutting and groove processing, meeting the requirements of machinery manufacturing for component processing accuracy.

    laser cutting machine in Shipbuilding

    Shipbuilding

    H-beams are important structural materials in shipbuilding. XT LASER H-beam laser cutting machines can achieve cutting and groove processing of large-size H-beams, meeting the requirements of shipbuilding for large component processing, and improving shipbuilding efficiency and quality.

    Laser Cutting Samples

    Muestras máquinas corte por láser para vigas en H

    Request a sample now and experience the outstanding performance of the XT LASER H-beam laser cutting machine for yourself!

    Get A Quote

    Contact us for professional technical support, online quotes, catalogs or demo videos.

  • TP Series Three Chucks Laser Tube Cutting Machine

    TP Series Three Chucks Laser Tube Cutting Machine

    TP Series

    Three Chucks Fiber Laser Pipe Cutting Machine

    Optional Power: 1500W-6000W

    Clamping Range: φ20-240mm

    Standardization No Longer Uniform

    Reduce Consumption

    Equipped with appropriate tube nesting templates, the TP series laser pipe cutting machine achieves ultra-short remnants, reducing material waste and improving cost-effectiveness.

    Expandable Options

    XTlaser provides various expansion options, such as semi-automatic/automatic loading, to meet customers’ efficiency needs for tube laser cutting.

    Unrestricted Tube Shapes

    Whether round, square, or rectangular tubes, the TP series can handle them with ease, providing customers with more options for tube processing.

    Features of the Three-Chuck Laser Tube Cutting Machine

    Moveable Three-Chuck

    Moveable Three-Chuck

    Equipped with three movable chucks, it can easily clamp metal pipes with diameters ranging from 20mm to 240mm. Additionally, the chuck positions can be adjusted as needed to cut both ends of the metal pipe, maximizing material utilization.

    Pneumatic Large Chuck

    Pneumatic Large Chuck

    The chuck clamps the workpiece and automatically positions the center and edges of the pipe. During the cutting process, the chuck remains clamped, ensuring stability and cutting accuracy.

    Servo Following Material Support Device

    Servo Following Material Support Device

    The CNC-controlled material support device can easily support various shapes of metal pipes, avoiding deformation during pipe processing. It is more flexible and precise than traditional supports.

    Specifications

    Model XT-TP230
    Tube Length(mm) 6000mm / 9000mm
    Laser Power(W) 1500W-6000W
    Maximum Chuck Speed 80r/min
    Maximum Acceleration 1.5G
    Position Accuracy ±0.05mm
    Tube Cross-Section Shape Round/Square/Rectangular Tube
    Processing Materials Carbon steel pipes, stainless steel pipes, silicon steel pipes, aluminium alloy pipes and other metal pipes

    Application Fields

    Architectural Decoration

    Architectural Decoration

    High power laser cutting machines are widely used in cutting body parts, chassis components, and welding preparation in the automotive industry, improving production efficiency and automotive quality, and advancing automotive manufacturing technology.

    Metal pipe processing

    Metal pipe processing

    The high-precision cutting and processing of oil and gas pipelines, water supply pipelines, etc., cannot be separated from laser tube cutting machines. The cutting machine ensures the accuracy and quality of pipeline connections, improving the construction efficiency and reliability of pipeline processing.

    Sports Equipment

    Sports Equipment

    In the field of sports equipment, fiber laser tube cutting machines are ubiquitous. They can be used to process frames, handrails, etc., for fitness equipment, ensuring component accuracy and precision, and improving the quality of sports equipment.

    Laser Cutting Samples

    laser tube cutting machine samples

    If you need free sample services for metal pipes of various shapes and materials, please click the button below.

    Get A Quote

    Contact us for professional technical support, online quotes, catalogs or demo videos.

  • TX Series Triple Chucks Fully Automated Pipe Laser Cutter

    TX Series Triple Chucks Fully Automated Pipe Laser Cutter

    TX SERIES
    TX SERIES

    Triple chucks laser tube cutting machine
    with side mount design for heavy duty metal bevel cutting

    3000W-12000W

    High rigidity machine frame with nearly no deformation

    Wide range of application with almost no tailings

    To make heavy tubes loading easier
    The machine frame is made from
    thick metal plates and tubes

    With dynamic structural design, the machine frame is welded from high quality raw materials and is roughened by stress relief annealing.
    Secondary vibration aging treatment, large-scale gantry milling machine precision machining, etc.. With these steps, we ensure that the guide surface and rack surface are completed at one time and therefore ultra precision will be assured.

    3 Pneumatic chucks
    Precise position control and torque control to ensure no loosening of thick tubes and no deformation of thin tubes

    Square and round hole design for better passing of various tubes

    Clamping force can be intelligently adjusted for different types of tube cutting

    Full range of clamping without manual adjustment

    Adopting eight-cylinder structure, the clamping force is twice as much as that of ordinary chucks.

    Precision ground gear drive for more power and efficiency
    Axle beams

    With axle beams design, it strives for stable structure, accurate positioning and strong dynamic performance.
    The connection structure with the bed is firm and stable to ensure the machining precision.

    Servo-following support system
    Semi-automatic loading of one pipe and real-time height adjustment according to the height of the pipe rotation

    To achieve perfect support while laser is cutting

    Strong support load-bearing. the overall 12-meter loading to meet the maximum weight of pipe lifting up to 1150KG
    Servo-following lowering

    Applicable to the automatic feeding for pipes of various length ,
    it brings you higher feeding efficiency. Once pipe cutting and punching is finished, the pallet table automatically hold the pipes. With such a design, it prevents the pipe from falling on the ground, which is convenient for the whole pipe to be discharged.

    Laser Cutting Samples

    laser tube cutting machine samples

    If you need free sample services for metal pipes and sheets of various shapes and materials, please click the button below.

    Get A Quote

    Contact us for professional technical support, online quotes, catalogs or demo videos.

  • T Series Laser Cutting Machine for Metal Tubes

    T Series Laser Cutting Machine for Metal Tubes

    T SERIES

    High Speed Tube Fiber Laser Cutting Machine
    1500W-4000W

    Intelligent Digital Chucks
    Strong Machine Bed
    Cut Multi Types of Tubes
    Automatic Support Installation
    Intelligent CNC System

    High Speed Tube Fiber Laser Cutting Machine
    1500W-4000W

    Intelligent Digital Chucks
    Strong Machine Bed
    Cut Multi Types of Tubes
    Automatic Support Installation
    Intelligent CNC System
    Intelligent Digital Chucks

    It is unnecessary to change claws while clamping 20-200mm tubes. Minimize tailing length.

    Strong Machine Bed

    It is welded by thick steel plate, the current mainstream bed structure, high stability;
    High temperature annealing treatment, less heat absoption, deformation prevention.

    Intelligent CNC System

    Specially developed for tube processing. It supports high-precision and high-efficiency cutting of square tubes, round tubes, racetrack-shaped and elliptical tubes, as well as angle steel and channel steel.

    Automatic Support Installation

    It employs intelligent tube support design
    which can solve the deformation problems in the process of long tube cutting

    Cut Multi Types of Tubes

    Not only cut conventional tubes like round,
    square and rectangular tubes, and profiles like channel, angle and H-shaped steels,
    also cut special-shaped tubes easily like triangular, concave,
    Land C-shaped tubes, etc.

    Laser Cutting Samples

    laser tube cutting machine samples

    If you need free sample services for metal pipes and sheets of various shapes and materials, please click the button below.

    Video
    Product Parameters
    Model XT-T160 XT-T220 XT-T230 XT-T350
    Pipe Section Shape Round/Square Tube/Rectangular Round/Square Tube/Rectangular Round/Square Tube/Rectangular Round/Square Tube/Rectangular
    Tube Size Range Round:Φ16 – Φ155mm Square:Φ16 – Φ155mm Rectangular:Long Side≤155mm Round:Φ20 – Φ220mm Square:Φ20 – Φ220mm Rectangular:Long Side≤220mm Round:Φ20 – Φ220mm Square:Φ20 – Φ220mm Rectangular:Circumcircle Φ≤220mm Round:Φ20 – Φ345mm Square:Φ20 – Φ240mm Rectangular:Circumcircle Φ≤345mm
    Maxi Length of Pipe 6.3m 6.3m 6.5m/9.2m 6.5m/9.2m
    Max Weight of Pipe 100Kg  16Kg/m 200Kg  30Kg/m 200Kg  30Kg/m 500Kg  83Kg/m
    Max Blanking Length 2m 2m 2m 2m
    Shortest Remnant 150mm 150mm 200mm 200mm
    Positional Accuracy ±0.03mm ±0.03mm ±0.03mm ±0.03mm
    Re-positional Accuracy ±0.02mm ±0.02mm ±0.02mm ±0.02mm
    Chuck Max Speed 80r/min 80r/min 120r/min 120r/min
    Max Speed of Chuck Feed Axis 90m/min 90m/min 120m/min 120m/min
    Max Speed of Laser Head Axis 90m/min 90m/min 90m/min 90m/min
    Max Accelerated Speed of Chuck Feed Axis 1G 1G 1.2G 1.2G
    Max Accelerated Speed of Laser Head Axis 1G 1G 1.2G 1.2G
    Max Accelerated Speed of Z Axis 60m/min 60m/min 60m/min 60m/min
    Get A Quote

    Contact us for professional technical support, online quotes, catalogs or demo videos.

  • TA Series Pipe Laser Cutter with Automated System

    TA Series Pipe Laser Cutter with Automated System

    TA SERIES
    TA SERIES

    Automatic Loading and Unloading Tube

    Laser Cutting Machine 1500W-4000W

    Bundle of tubes
    Intelligent distribution
    Double pneumatic chuck
    Automatic loading and unloading
    Reduce cost and increase efficiency

    Automatic Loading and Unloading Tube

    Laser Cutting Machine 1000W-4000W

    Bundle of tubes
    Intelligent distribution
    Double pneumatic chuck
    Automatic loading and unloading
    Reduce cost and increase efficiency
    Automatic Loading and Unloading
    Labor Saving and Easy Operation

    Human-machine interconnection is more intimate, safe and efficient
    The material rack bears 3 tons, batch processing is pressure-free, and the workpiece is anti-scratch design

    Professional Full Pneumatic Chuck

    Double pneumatic chuck, intelligent pneumatic opening clamp
    Greater clamping force, no loosening or slipping of heavy pipes, adapting to tubes of different shapes
    Conveying material is more stable, reducing non-production time and increasing productivity

    Powerful Dynamic Performance
    Realize Diversification of Tube Processing

    Powerful Dynamic Performance
    Realize Diversification of Tube Processing

    Efficient production of scattered orders, easy response to large-scale orders

    Beam of Hollow Arch Bridge

    Absorb bridge technology, strive for structural stability high-speed operation still ensure ultra-high precision

    Light weight, high strength, more durable

    Beam can get higher dynamic response and improve machining efficiency

    Super Pocessing Capacity

    Tube range:
    round tube diameter Φ20mm-220mm
    Square tube side length Φ20*20mm-155*155mm
    Rectangular tube outer circle diameter ≦220mm
    Processing single tube maximum weight 200kg 30kg/m
    Minimum spare material 150mm

    Laser Cutting Samples

    laser tube cutting machine samples

    If you need free sample services for metal pipes and sheets of various shapes and materials, please click the button below.

    Product Parameters
    ModelTA Series
    Types of Pipe ProcessingRound, Square, Rectangular(Rectangular:Long Side>20mm)
    Chuck Max Speed120r/min
    Chuck Feed Shaft Max Speed120m/min
    Acceleration1.2G
    Tube Size RangeRound: Φ20-Φ220mm    Square: Φ20-Φ155mm    Rectangular: Circumcircle≤220mm
    Max Weight of Pipe200Kg  30Kg/m
    Tube Feeding Length Range2500mm-6500mm
    Max Load-bearing Capacity of the Silo3.0t
    Max Bale Diameter750mm
    Shortest Remnant150mm
    Get A Quote

    Contact us for professional technical support, online quotes, catalogs or demo videos.

Get a Quote

Need Help?

Fill out the form below and support will be available within the hour!
