Fully Enclosed Exchange Table Tube & Plate Fiber Laser Cutting Machine 1500W-8000W
One Machine with Two Functions
High Strength Plate Welded Machine Bed
Double Pneumatic Chucks
High Speed Exchange Table
Visualization Control System
Fully Enclosed Exchange Table Tube & Plate Fiber Laser Cutting Machine 1500W-8000W
One Machine with Two Functions
High Strength Plate Welded Machine Bed
Double Pneumatic Chucks
High Speed Exchange Table
Visualization Control System

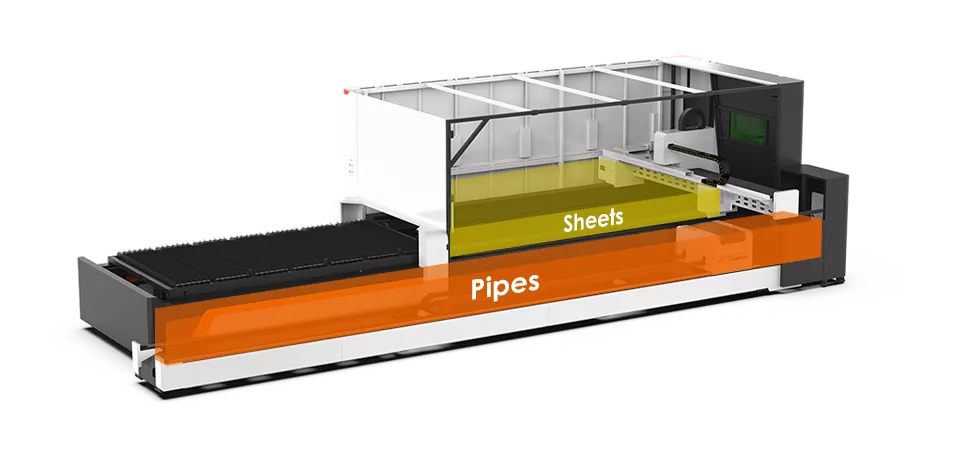

One Machine with Two Functions

GT series can cut both tube and plate metals, combining a tube laser cutting machine and plate laser cutting machine. It will expand user’ scope of cutting type and enhance their market competitiveness.

Save purchasing costs
One machine with multi-function
Save working space

High Strength Plate Welded Machine Bed

Machine bed is welded by high-quality carbon steel plate against high tensile force; Relieve welding stress by high temperature annealing and natural aging, anti-deformation and more durable.
The max accuracy can reach ±0.01mm and guarantee machine have high cutting precision.

Double Pneumatic Chucks
2~3 times faster than traditional electric chucks
2 rows of rollers are adopted for a wide range of clamping and high cutting precision.
Dual support frame for 6m tube

Φ20-220mm     □20-150mm     Diagonal: 20-150mm
Channel & angle steel available

High Speed Exchange Table

Exchange table use newest parallel technology, one-key switch is available in software, very convenient operation. Table exchange will be finished within 20S of 1530 model, increasing working efficiency and saving labor cost hugely.

Visualization Control System

All parameter is visible and adjustable in monitor. Gas type and pressure visually;
Intelligent edge tracking, auto positioning; Import files of multiple formats,intelligenttypesetting,
auto sequencing, process graph display, easy and convenient operation.

Cutting Samples
Video
Product Parameters

Model

XT-G1530T

Working Area

1510×3050mm

Max Linkage Speed

140m/min

Max Acceleration

1.5G

Positional Accuracy

±0.03mm

Re-positional Accuracy

±0.02mm

Pipe Section Shape

Round/Square Tube/Rectangular

Tube Size Range (Dual Pneumatic)

T160:Round:Φ16-Φ155mm
Square:□16-□155mm
Rectangular:Long Side≤155mm
T220: Round:Φ20-Φ220mm
Square:□20-□220m
Rectangular:Long Side≤220mm
