TK120 2.0 Two-chuck Side-mounted Pipe Laser Cutting Machine
Two-chuck side mounted laser tube cutter has a small footprint and fast production speed. Equipped with a special cutting system, the machine is easy to operate, high precision, and can cut square, round, rectangular and other metal tubes with different interfaces.
- Laser Power: 1kW-3kW
- Maximum Pipe Length: 6.5m
- Chuck Clamping Range: Φ10-Φ120mm
- Max. Feeding Speed of Chuck Axis: 150r/min
Performance Advantages
TK120 tube laser cutting machine focuses on small tube cutting, with automatic loading system can realize high speed and high efficiency cutting.
Semi-automatic loading

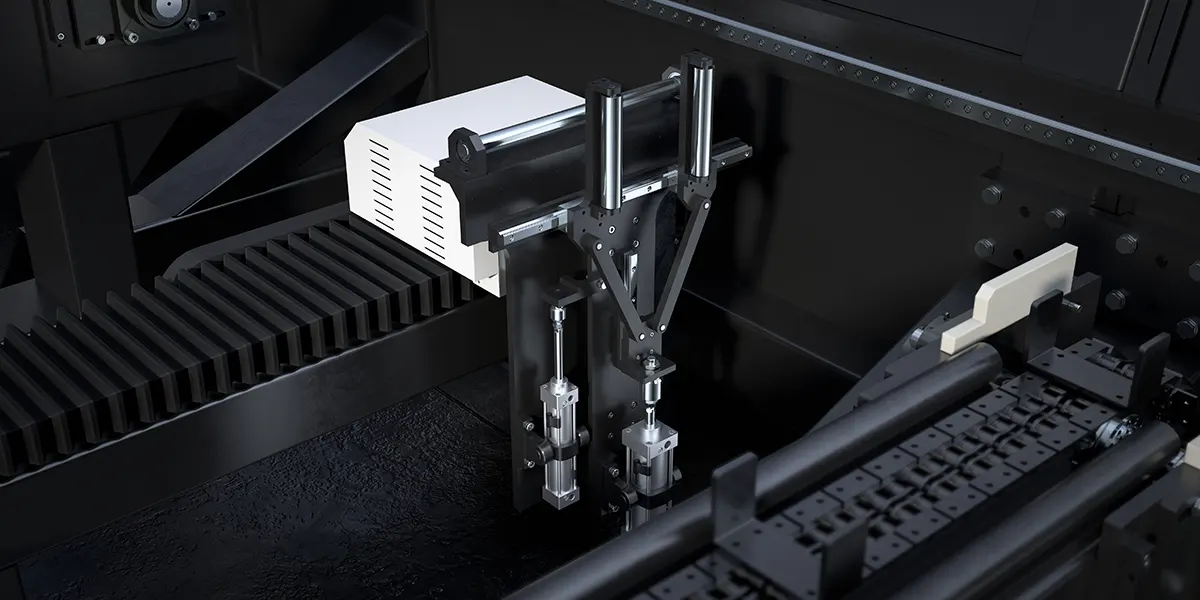

- Equipped with semi-automatic loading system to automatically convey the pipes to be processed, multiplying the efficiency.
Cutting short end material
- Innovative servo motor drive, the front chuck moves forward stably and pushes forward automatically to cut short tail material, increasing material utilization rate by 12%.
Support multi-pipe processing
- The machine supports the cutting of square, round and rectangular pipes with a processing length of up to 6.5 meters.
| Model | XT-TK90 | XT-TK120 |
| Laser Power | 1kW-3kW | 1kW-3kW |
| Maximum Pipe Length | 6.5m | 6.5m |
| Chuck Clamping Range | Round tube: Φ10-Φ80mmSquare tube: Φ10-Φ80mmRectangular tube: long side≤80mm | Round tube: Φ10-Φ120mmSquare tube: Φ10-Φ120mmRectangular tube: long side≤120mm |
| Max. Feeding Speed of Chuck Axis | 200r/min | 150r/min |
| Positioning Accuracy | ±0.03mm/min | ±0.03mm/min |
| Re-positioning Accuracy | ±0.02mm/min | ±0.02mm/min |
Mechanical Advantages
The machine adopts side structure layout and is annealed and aged at 600℃ to eliminate stress, ensuring smooth high-speed operation for a long time.
Z-axis sealing module
Four pallet rollers support
Side-mounted bed body
Control System Advantages
Intelligent control system ensures accurate and efficient cutting process, comprehensively reduces manual intervention and improves production stability.

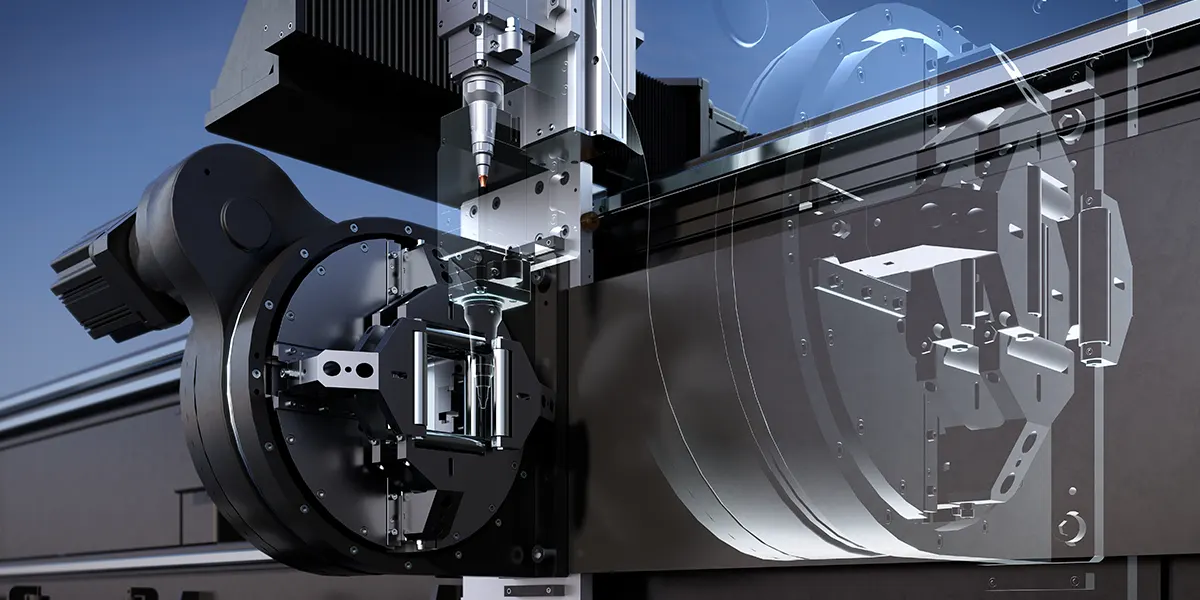

Automatically detect the position of the cutting head to ensure that the cutting head and the chuck “automatically maintain a safe distance” to eliminate the risk of collision.
High-precision control, real-time synchronized feedback, stable and anti-interference signal, efficient integration with intelligent processing.
According to the rotating attitude of the pipe, it automatically detects the relative position of the cutting head and the pipe, and automatically tracks it for smoother cutting.
The laser head and the pipe are synchronized in the process of movement, reducing the process of frequent acceleration and deceleration, realizing uninterrupted cutting, and increasing the cutting efficiency of dense graphics by 30%.
Worry-free service guarantee
We value the real needs and user experience of our customers and provide timely and effective services to global customers.
Machine maintenance
During the warranty period, maintenance personnel will provide on-site maintenance services, covering mechanical structure, electrical system, control system, etc.
Flexible training
XT LASER provides online/offline free combination training programs, you can freely choose according to your needs.
Global spare parts supply
Adopting the "proximity principle" to provide original accessories for global users, and the headquarters central warehouse will ship within 3-5 working days.
All-day technical support
7×24 hours three-level response (emergency problems within 30 minutes), remote guidance + real-time update of process parameter library.
FAQs
Have any questions? The following FAQs can solve your confusion.
What materials can fiber laser cutting machines cut?
Fiber laser cutting machines can cut most metal materials, including stainless steel, carbon steel, aluminum, copper, alloy steel, galvanized sheet, titanium, etc. They are widely used in sheet metal processing, kitchen utensils, aerospace, metal cabinets, automotive parts, construction and other industries.
What are the advantages of laser cutting machines over other cutting methods?
Laser cutting technology has significant comprehensive advantages over traditional cutting methods (such as flame cutting, plasma cutting, waterjet cutting).
- High precision laser cutting, narrow kerf width, smooth and burr-free, small heat-affected zone, no need for secondary grinding and polishing.
- Non-contact processing, no mechanical stress, avoiding tool wear or material deformation.
- Optimize cutting path through intelligent nesting system, reduce edge waste and save processing cost.
- Support seamless connection with intelligent control system (e.g. bus communication, automatic loading and unloading, visual positioning) to realize 24-hour unmanned production.
- Fiber laser electro-optical conversion rate＞30%, low energy consumption, cost-effective.
- Can quickly switch the cutting pattern, high cutting efficiency, saving time and cost.
What software does the laser cutting machine need to support? What file formats are compatible?
Fiber laser cutting machines require professional laser cutting control software and CAM software to process design files and generate cutting paths, such as LightBurn, AutoCA, etc., and are compatible with DXF, SVG, AI (Adobe Illustrator), EPS, DWG, PDF, PLT, etc.
What materials and pipe sizes can the TK120 cut?

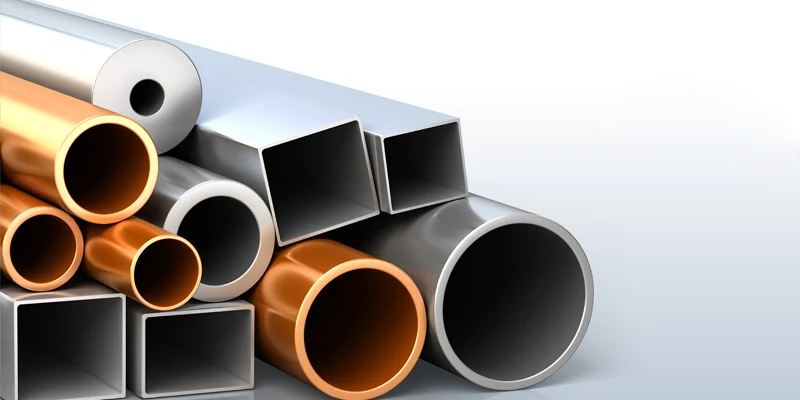

- The machine can cut square, round and rectangular pipes made of carbon steel, stainless steel, aluminum alloy, brass and other metal materials.
- Cutting diameter range: Φ10-Φ120mm square and round tubes, rectangular tubes with long side length within 120mm, it should be noted that the diameter refers to the outer diameter of the tube.
- Cutting length of pipe: within 6.5m as standard.
Does the operation require specialized personnel? Does daily maintenance need to be complicated?
- Intelligent operation: equipped with graphical man-machine interface, support CAD drawings imported by one key, operators can get started after 1-3 days of training.
- Low-maintenance design: modular structure design, with automatic lubrication system and self-diagnostic function, only need to clean the guide rail and lens in daily life.
What should I pay attention to when maintaining the laser cutting machine?
- Clean or replace the optics (focusing mirror, reflector) and nozzle regularly to avoid contamination affecting the cutting quality.
- Check the operation status of the cooling system (water-cooled or air-cooled) to ensure that the water temperature and flow rate are normal to prevent the laser from overheating.
- Clean the debris of the guide rail, screw and other transmission parts and lubricate them regularly to ensure the precision of movement; check the filtering device of the dust removal system and clean the soot residue in time.
- Calibrate the optical path and cutting head focal length to ensure accurate laser beam centering and focusing.
- Regularly update the control system software and backup parameters, and record the operation log to track the status of the equipment. Always disconnect the power and wear protective equipment before operation to avoid accidental contact with high-voltage components or laser radiation.
