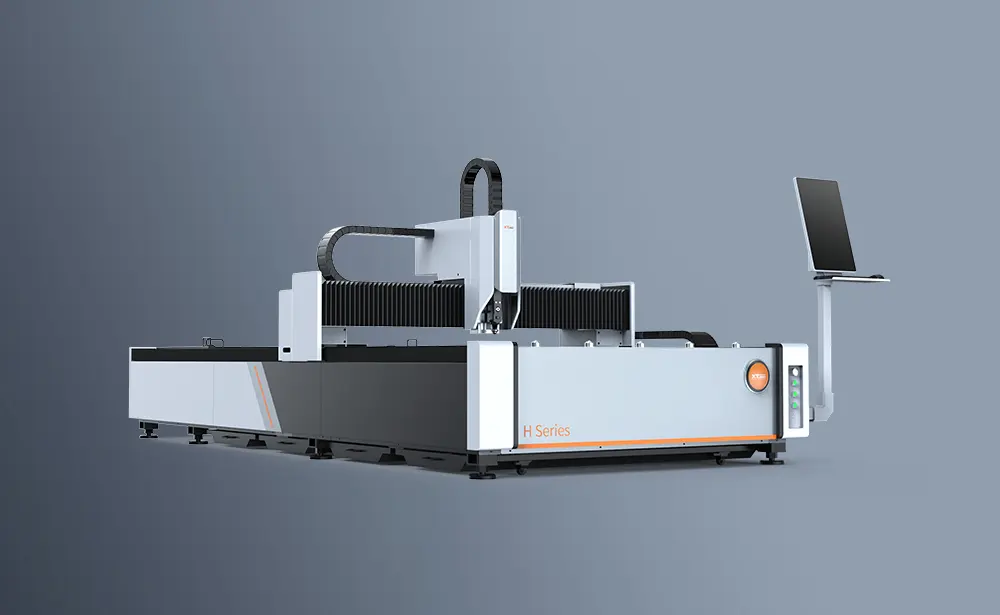

1kW-6kW Single Platform Plate Laser Cutting Machine H1530 2.0
H1530 metal laser cutting machine is fully upgraded with high precision cutting, smooth and burr-free cut, eliminating the need for secondary processing. Compact design, small footprint, easy to adapt to small plants, economical and durable.
- Laser Power: 1kW-6kW
- Processing Area: 1530*3050mm
- Maximum Air Movement Linkage Speed: 100m/min
Performance Advantages
The machine is suitable for small plants and can realize high-precision cutting of carbon steel, stainless steel, aluminum, copper and other thin metal plates with smooth and burr-free cutting surface.
Precision Cutting Thin Plates
- With advanced equipment and excellent technology, this machine can perfectly balance cutting quality, speed and processing cost to meet the needs of cutting thin metal plates.
9㎡ minimal space
- The machine adopts advanced automation and integration technology, and integrates the key core components such as the electric control cabinet and laser into the bottom of the bed. gopies hounding The internal structure is reasonably arranged to effectively save floor space.
High Cost-effective
- Whether in terms of cutting effect or durability, single table sheet metal laser cutting machine far exceeds other products in the same category, and is the most cost-effective metal processing equipment.
| Model | XT-H1530 | |
| Laser Power | 1000W-2000W | 3000W-6000W |
| Processing Area | 1530×3050mm | 1530×3050mm |
| Max. Idle Movement Linkage Speed | 100m/min | 90m/min |
| Z-axis Stroke | 80mm | 80mm |
| Positioning Accuracy | ±0.05mm/min | ±0.05mm/min |
| Re-positioning Accuracy | ±0.03mm/min | ±0.03mm/min |
Mechanical Advantages
The machine is designed for sheet metal cutting, with convenient man-machine interaction and high cutting efficiency.
Cantilever Control Platform
Absolute value motor
Anti-Burn Armor
Full Process Intelligent Control System
Intelligent control system ensures accurate and efficient cutting process, comprehensively reduces manual intervention and improves production stability.
Quickly cut off the sheet, cut off the edge, and recover the whole remaining tail material, convenient for reuse.
Through real-time, real-time data communication technology, it realizes the good work of each module inside the equipment (such as laser, motion axis, sensor, human-machine interface, etc.), with stable signal, anti-interference, and 700% higher efficiency than pulse.
Compact and reasonable parts layout, improve material utilization, effectively reduce costs by 28%.
The laser head automatically and intelligently searches for the center of the workpiece, reducing the number of workpieces and increasing the yield rate.
Worry-free service guarantee
We value the real needs and user experience of our customers and provide timely and effective services to global customers.
Machine maintenance
During the warranty period, maintenance personnel will provide on-site maintenance services, covering mechanical structure, electrical system, control system, etc.
Flexible training
XT LASER provides online/offline free combination training programs, you can freely choose according to your needs.
Global spare parts supply
Adopting the "proximity principle" to provide original accessories for global users, and the headquarters central warehouse will ship within 3-5 working days.
All-day technical support
7×24 hours three-level response (emergency problems within 30 minutes), remote guidance + real-time update of process parameter library.
FAQs
Have any questions? The following FAQs can solve your confusion.
What materials can fiber laser cutting machines cut?
Fiber laser cutting machines can cut most metal materials, including stainless steel, carbon steel, aluminum, copper, alloy steel, galvanized sheet, titanium, etc. They are widely used in sheet metal processing, kitchen utensils, aerospace, metal cabinets, automotive parts, construction and other industries.
What are the advantages of laser cutting machines over other cutting methods?
Laser cutting technology has significant comprehensive advantages over traditional cutting methods (such as flame cutting, plasma cutting, waterjet cutting).
- High precision laser cutting, narrow kerf width, smooth and burr-free, small heat-affected zone, no need for secondary grinding and polishing.
- Non-contact processing, no mechanical stress, avoiding tool wear or material deformation.
- Optimize cutting path through intelligent nesting system, reduce edge waste and save processing cost.
- Support seamless connection with intelligent control system (e.g. bus communication, automatic loading and unloading, visual positioning) to realize 24-hour unmanned production.
- Fiber laser electro-optical conversion rate＞30%, low energy consumption, cost-effective.
- Can quickly switch the cutting pattern, high cutting efficiency, saving time and cost.
What software does the laser cutting machine need to support? What file formats are compatible?
Fiber laser cutting machines require professional laser cutting control software and CAM software to process design files and generate cutting paths, such as LightBurn, AutoCA, etc., and are compatible with DXF, SVG, AI (Adobe Illustrator), EPS, DWG, PDF, PLT, etc.
How to choose laser power?
The laser power of the laser cutter depends on the cutting material and thickness. If you don’t know how to choose the right power for your device, please contact us.
What should I pay attention to when maintaining the laser cutting machine?
- Clean or replace the optics (focusing mirror, reflector) and nozzle regularly to avoid contamination affecting the cutting quality.
- Check the operation status of the cooling system (water-cooled or air-cooled) to ensure that the water temperature and flow rate are normal to prevent the laser from overheating.
- Clean the debris of the guide rail, screw and other transmission parts and lubricate them regularly to ensure the precision of movement; check the filtering device of the dust removal system and clean the soot residue in time.
- Calibrate the optical path and cutting head focal length to ensure accurate laser beam centering and focusing.
- Regularly update the control system software and backup parameters, and record the operation log to track the status of the equipment. Always disconnect the power and wear protective equipment before operation to avoid accidental contact with high-voltage components or laser radiation.
How difficult is it to operate a laser cutting machine? Does it require professional training?
XT LASER’s sheet metal laser cutting machine is equipped with a visual operation interface and a detailed operation manual, so even if you are a novice, you can quickly get started. If you are a beginner, it is recommended to read the safety guide before use, or contact our professional technicians online.
