50w Raycus or 60w JPT Mopa M7 fiber laser marking machine-Eliza-XTLASER

1.Firstly

Fiber laser marking machine in jewelry business-50w Raycus or 60w JPT Mopa M7 fiber laser marking machine

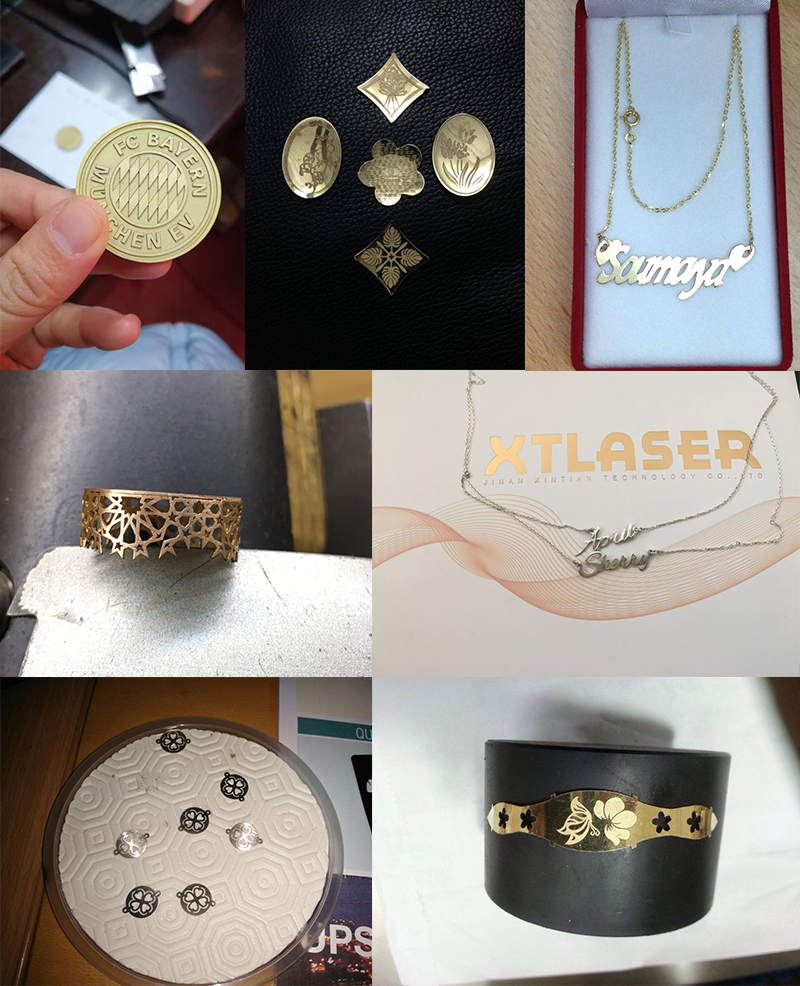

Now more and more customers in jewelry business choose small fiber laser marking machine do silver and gold cutting

50w can cut max about 1mm silver and 1.2mm gold and brass, 60w will be faster and cutting effect is better. https://youtu.be/B_LxdeFn6I4

2.Secondly

And it cuts silver /gold better . Is this because of the extra 10 w ? Or better laser ?

JPT M7 series high power pulsed fiber lasers make use of master oscillator power amplifier (MOPA) configuration, and show excellent laser performance as well as high level of temporal pulse shaping controllability. As compared to the Q-switching technology, the pulse repetition frequency (PRF) and pulse width can be controlled independently in MOPA configuration, through adjusting different combination of the above parameters, the peak power of laser can be well maintained. And enable JPT laser suitable for more material processing which Q-switch limited. The higher output power makes its advantages especially in high speed marking applications.

3.Thirdly

Laser source: Raycus VS JPT Mopa M7

For laser source,important are Maximum Pulse Energy,Pulse Repetition Rate Range and Pulse Duration,here is summary comparison of JPT and Raycus:



	Raycus 50W	JPT 60W M7
Pulse Energy	1mJ	1.5mJ
Pulse Repetition Rate Range	50-100 kHZ	1-4000 kHZ
Pulse Duration	<130 ns	2-500 ns

4.Fourthly

Advantages for JPT Mopa:

Except normal marking  and engraving, JPT Mopa series has advantage for color marking on stainless steel and blackening marking on anodized aluminum.
