CS Cutting

Fiber laser cutting machine, with laser wavelength of 1070-1080nm, can cut different kind metals, like stainless steel, carbon steel,  aluminum sheet, brass, copper,  galvanized plate, etc.

In this article,  mainly talking about CS Cutting.

Chose the right laser machine for CS Cutting.

Different thickness CS need different laser watt. Below the Max cutting thickness of different watt, for CS Cutting:

Material                  Cutting machine watt   Max cutting thickness
Carbon steel 500w  6mm
Carbon steel 750w  8mm
Carbon steel 1000w  10mm
Carbon steel 1200w  12mm
Carbon steel 1500w  16mm
Carbon steel 2000w  20mm
Carbon steel 3000w  22mm

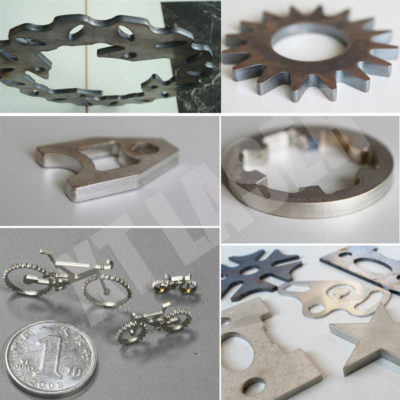

fiber laser CS Cutting machine samples

CS Cutting

CS Laser Cutting: Factors that Affect the Process

Power of Laser:

The laser power is one of the most important factors, in the laser treatment of different materials, as well as CS Cutting.

Also, a lower power laser beam is utilize when we want a greater cutting precision. On the other hand, thicker and more durable materials require a higher powered laser beam. For example, an 8mm metal sheet requires at least 1000 watts to cut effectively.



Pulse Frequency:

The pulse frequency is somewhat proportionally link to the laser beam power.

Modern lasers offer sophisticated control features for the laser cutting process

that allow for automatic increase or decrease of the pulse frequency according to the material at hand.

laser cutting Type of Gas:

Each material requires a specific type of gas to use the laser

in order for the machining to effective and safe. The wood which is flammable excludes the use of oxygen for example because there would be a fire hazard. Oxygen on the other hand, is use when cutting metal surfaces which are free of oxides.

The gas type is not the only factor that comes into play. The quality of the gas is equally important. Different purity versions of the same type of gas, affect differently the cutting process both time- & quality-wise.

Gas Pressure:

The pressure of the laser gas is another important factor to keep in mind. The gas pressure is influence he thickness of the material to cut. The thinner the material, the lower the gas pressure or there is a risk of damaging the material and the laser device itself.

Nozzles Size:

The cutting nozzles significantly influence the laser cutting process. For example, when we have to deal with low-pressure laser cutting, smaller nozzles are require. Conversely, when the material machining calls for a higher-pressure cut, then we need to use larger nozzles.

Nozzle Distance from Material Surface:

The distance of the nozzles from the cutting surface plays an important role in the quality of the final laser cut result. As a rule of thumb, the shorter the distance between the tip and the surface, the more precise and higher-quality cut we have.

That being said, in several occasions it is advised to increase the distance in order to prevent damage to the equipment.

Focus Lens Condition:

The focus lens needs to be clean and in perfect condition at all times. If there are pollution traces on the lens, then the laser cutting process is hindered and the results are of lower quality. Furthermore, a dirty focus lens is the main culprit for increased temperatures that may harm the laser device.

Hope the above can help you in your metal sheets cutting process, especially in CS Cutting.

Any question about fiber laser cutting, welcome to contact us.
